Custom User Program

Updated

The guide explains how to activate one of the 2 custom weekly programs (U1 or U2) so that the radiator with blower operates in automatic mode, following the user-created schedules.



AVAILABLE FOR

  • Electric Radiator
  • Blower
  • Both



What it is

Custom user programs (U1 or U2) allow the radiator with blower to operate automatically without manual intervention, following a weekly schedule personalized by the user.


When to use it

Useful when you want the radiator to automatically manage the COMFORT and ECO temperatures according to a schedule created by the user based on their daily routine.



How to select a Custom Weekly Program




  1. Make sure that the switch located on the back of the Blower is set to position 1 and that the Blower is switched on..

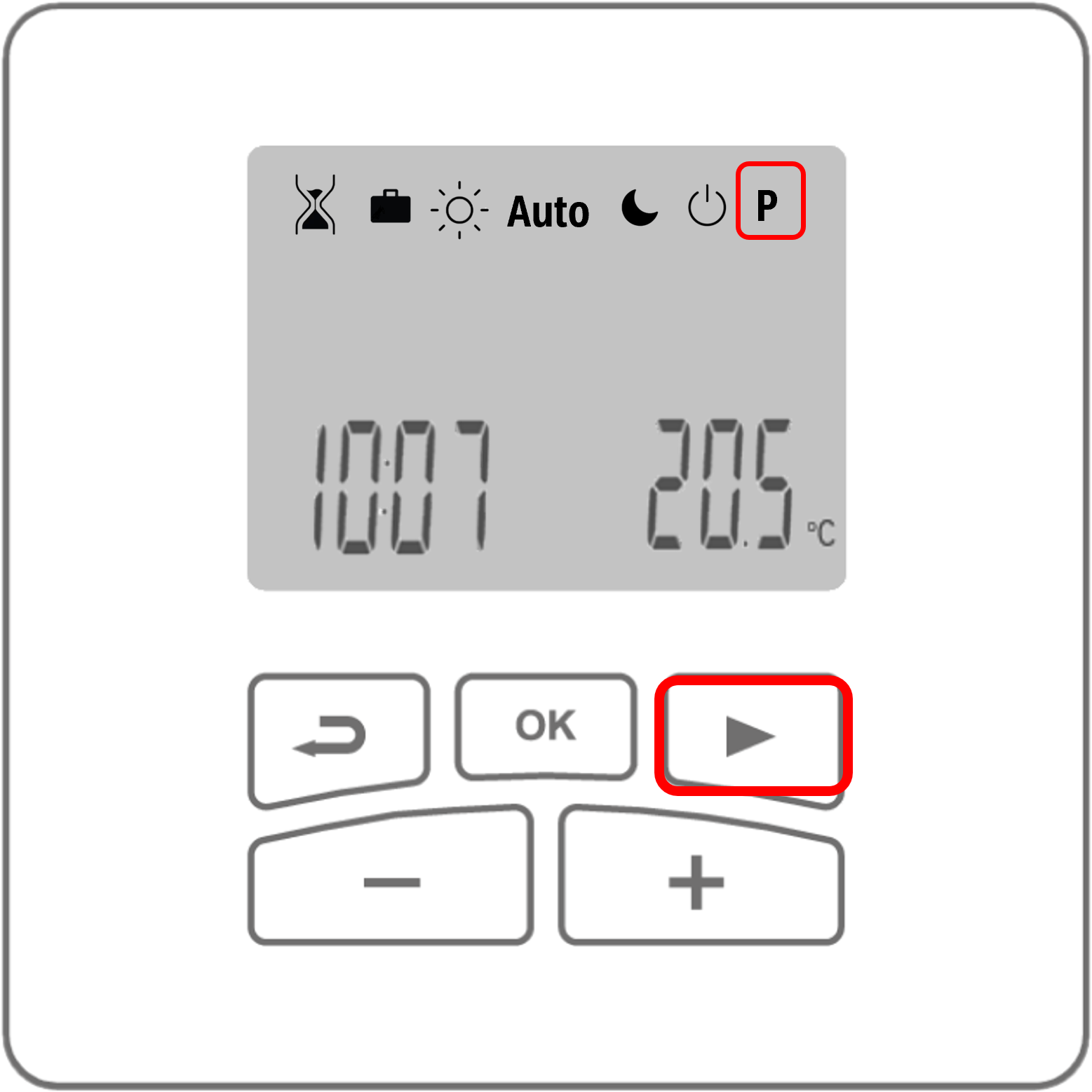

  2. Press the navigation button repeatedly until you select the P icon at the top of the display, corresponding to the PROGRAMMED mode;

    Then press OK to confirm.







  1. Use the + and - buttons to select one of the two user programs that you want to customize

    • U1
    • U2





  1. Press and hold the OK button until the "I get up" icon appears.

  2. Use the + and - buttons to set the time at which you want the radiator to start operating in comfort mode.

  3. Press OK to confirm.
    The "I leave home" icon will appear.

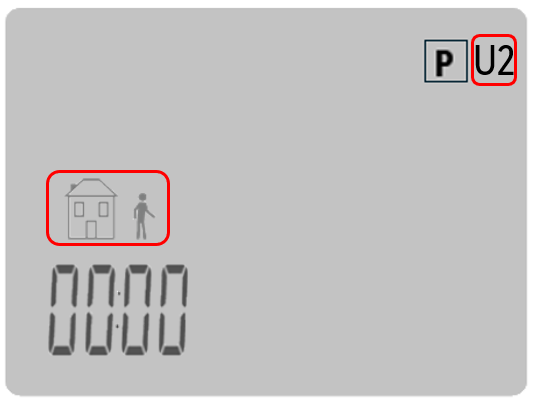

  1. Press OK to confirm that you want to set the time when you leave home.

  2. Use the + and - buttons to set the time at which you want the radiator to be set to reduced mode.

  3. Press OK to confirm
    The "I return home" icon will appear.





  1. Press OK to confirm that you want to set the time when you return home.


  2. Use the + and - buttons to set the time at which you want the radiator to be set to comfort mode.


  3. Press OK to confirm.

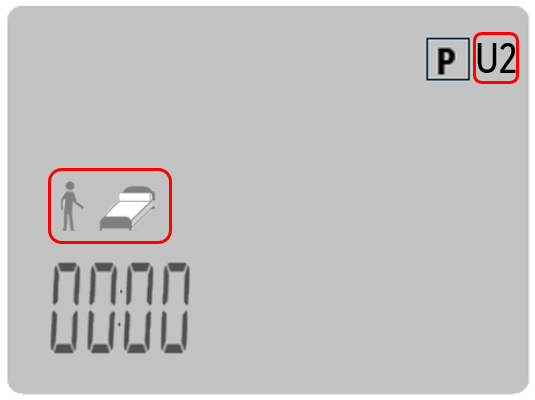

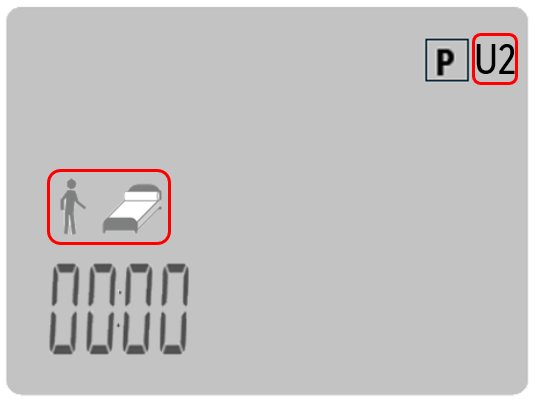

    The "I go to sleep" icon will appear.





  1. Press OK to confirm that you want to set the time when you go to sleep.

  2. Use the + and - buttons to set the time at which you want the radiator to be set to reduced mode.

  3. Press OK to confirm.






  1. Congratulations, you have planned Day 1 of the week (Monday).

  2. Press the following buttons to:

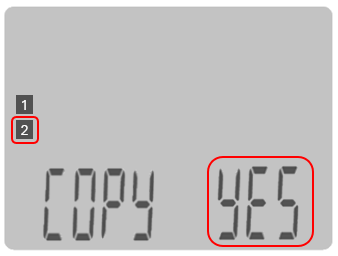

    • OK: to confirm that you want to copy the same schedule for Day 2 of the week (Tuesday).
    • + or - to select NO and create a different schedule for Day 2 of the week (Tuesday).

  3. Proceed until Day 7 of the week (Sunday), then press OK to confirm.

  4. Once the weekly schedule is completed, the radiator will activate in the mode set for the current day and time slot.







ATTENTION:
Only for electric radiators with Blower.

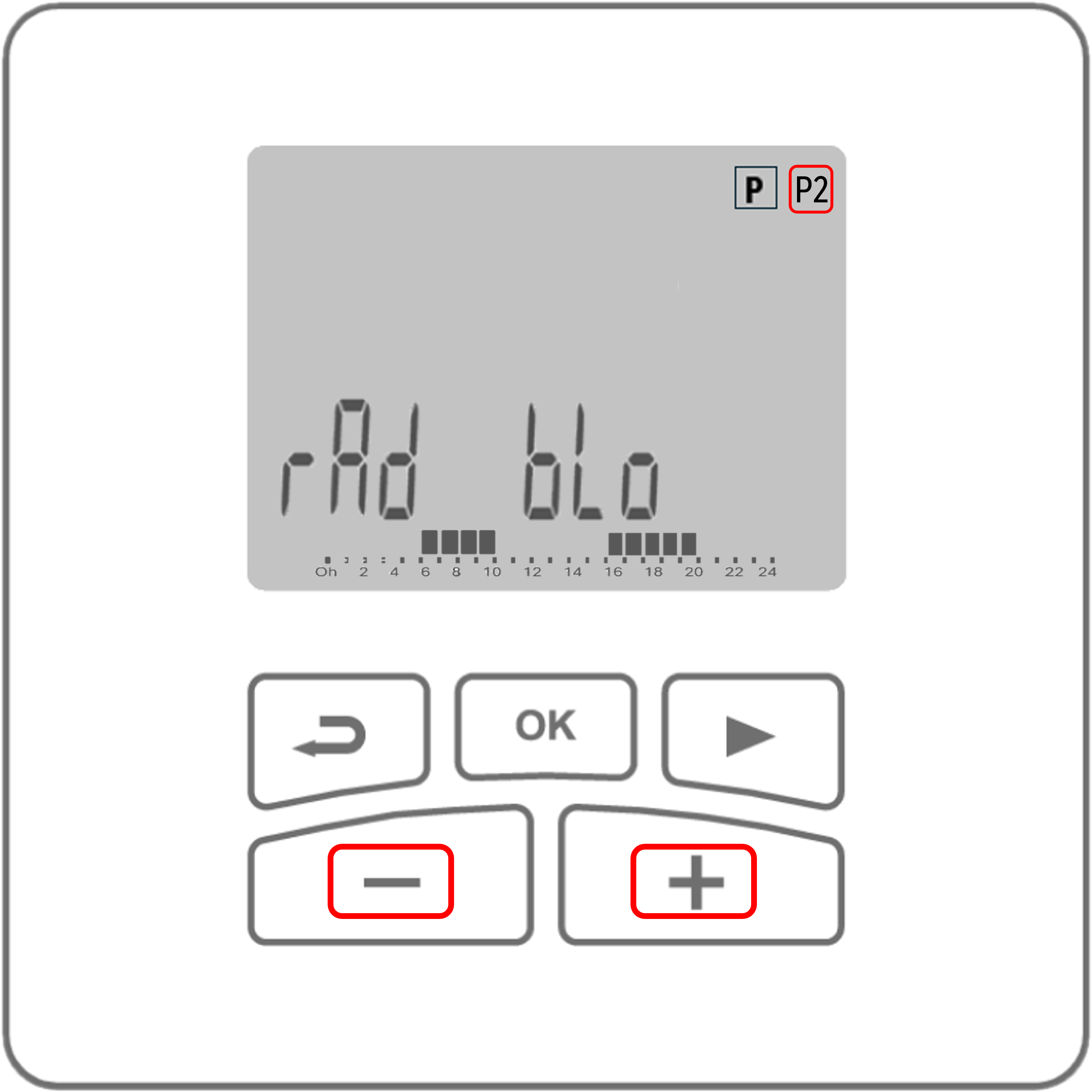

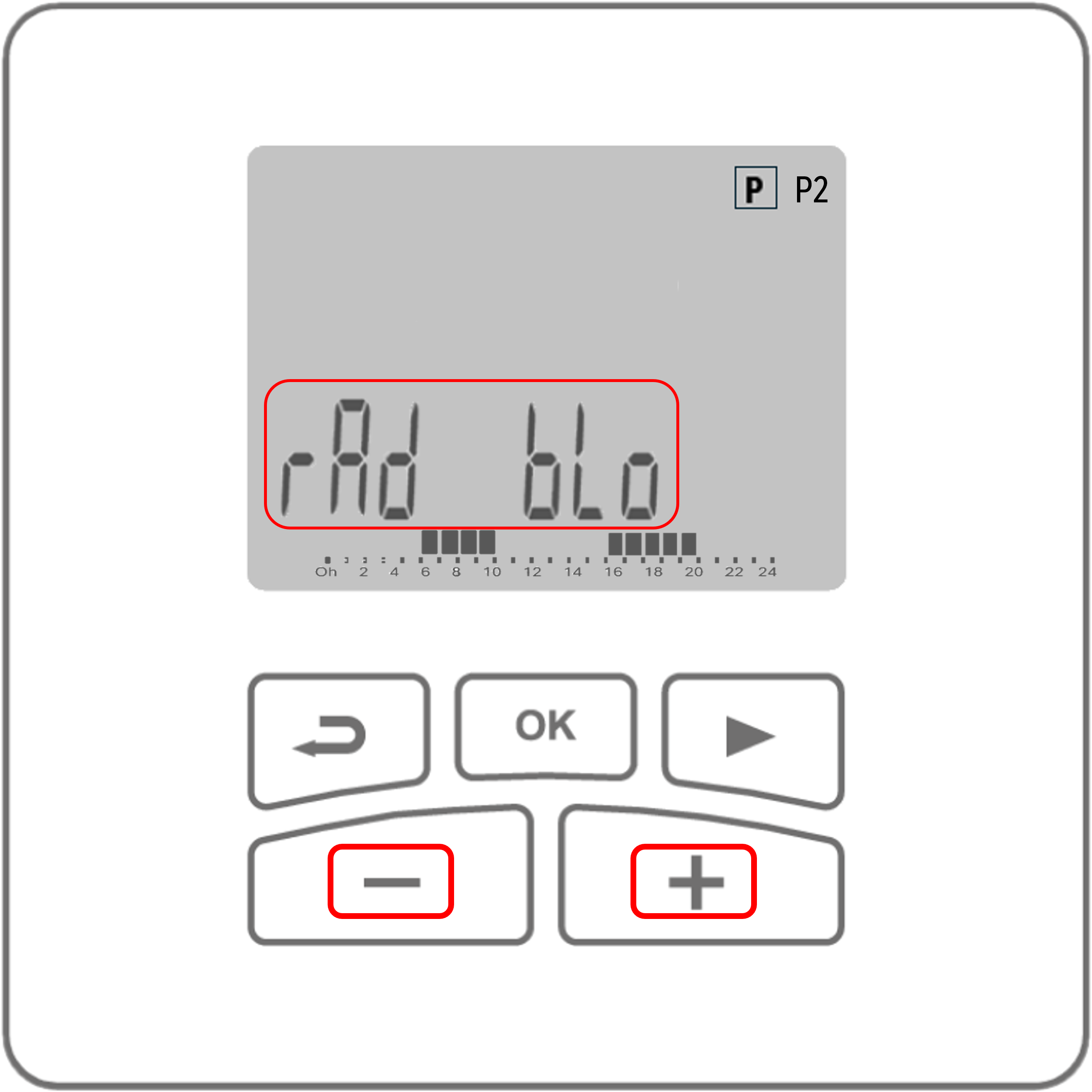

  1. Use the + and - buttons to select which device you want to activate in the chosen mode.

    1. bLo (Blower only)
    2. rAd (Radiator only)
    3. rAd bLo (Radiator and Blower)

  2. Press OK to confirm.

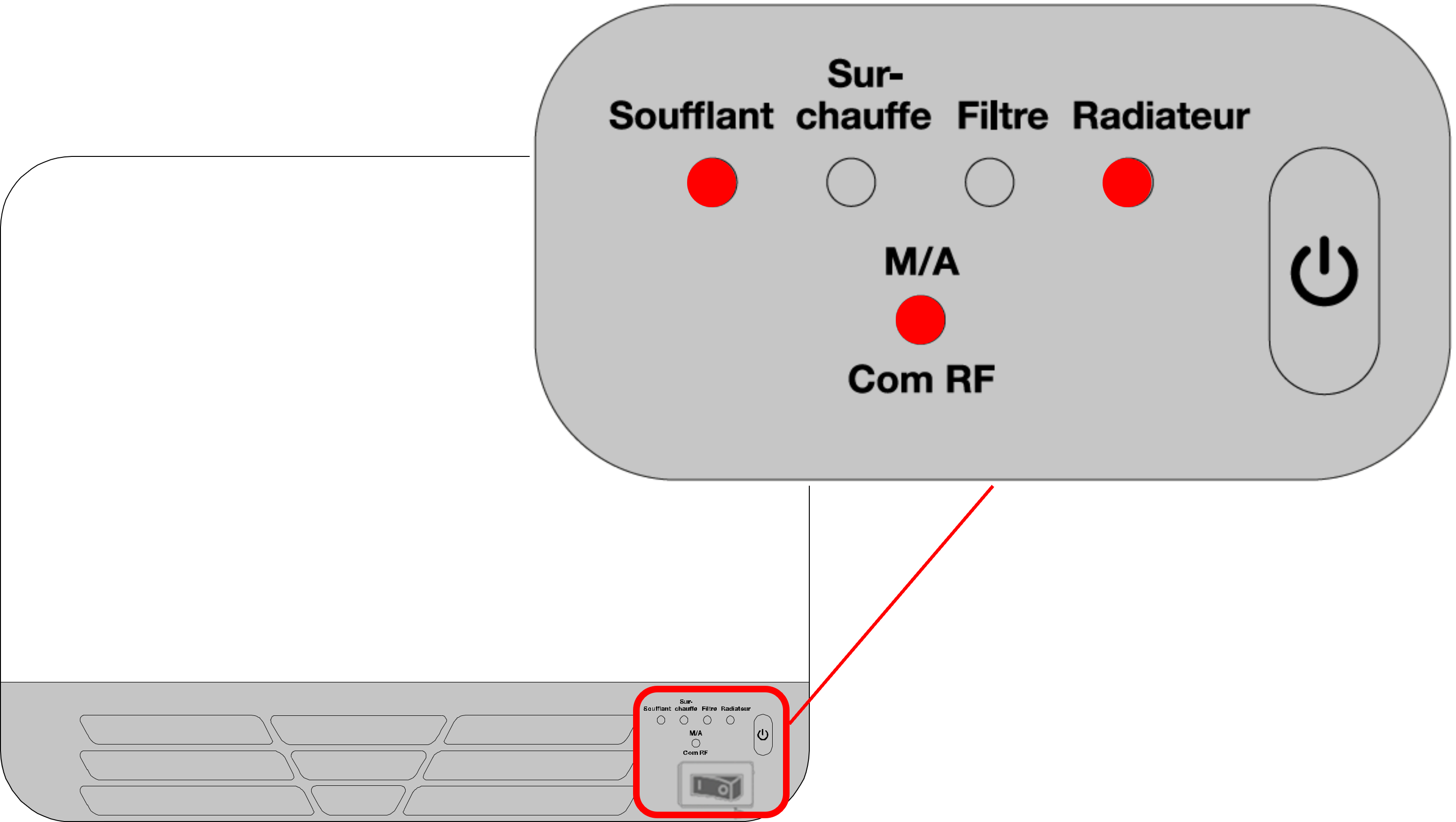

  1. The A/M LED will light up as a confirmation of the setting being received, along with the LED of the corresponding device:

    • Soufflant (Blower only)
    • Radiateur (Radiator only)
    • Soufflant and Radiateur (Radiator and Blower)







Tips or Troubleshooting

Here you will find answers to frequently asked questions.

  • Preset Weekly Programs

  • How to configure the Blower remote control

  • AUTO Mode





See the Operation section to discover all the functions of the radiator with Blower.
